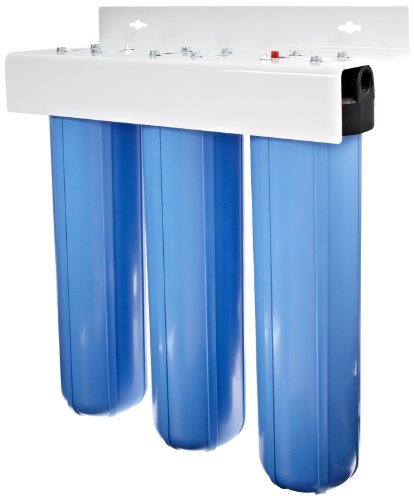

Pentek 160168 BBFS-222 1" #20 Big Blue Three-Housing Filter System Product Description:
- Three-housing water filtration system for residential, commercial, and industrial applications
- Reinforced polypropylene housings and powder-coated carbon steel bracket for strength and chemical resistance
- Maximum flow rate of 40 gpm
- Maximum pressure of 90 psi
- Maximum temperature of 100 degrees F (37.8 degrees C)
Product Description
This Pentek 160168 BBFS-222 1" #20 Big Blue three-housing filter system is suitable for residential, commercial, and industrial applications. It consists of three polypropylene housings mounted in series on a white powder-coated carbon steel wall-mounting bracket. Each housing has a reinforced polypropylene cap with two 1" female National Pipe Thread Taper (NPT) threaded connections and a nitrile butadiene rubber (Buna-N) O-ring to ensure a watertight seal. A pressure-relief button on the inlet side relieves housing pressure during cartridge changes. Depending on the filter cartridges (sold separately) used, this system can provide filtration for residential drinking water purification, commercial deionization and coalescing, and industrial processes such as plating, organic reduction, and circulating baths. The system is rated for a maximum flow rate of 40 gallons per minute (gpm), a maximum pressure of 90 pounds per square inch (psi), and a maximum temperature of 100 degrees F (37.8 degrees C). This three-housing filtration system is for use in various applications such as residential water treatment, deionization, and purification of industrial process water, among others.
Specifications
| Filter cartridge size (H x W) (sold separately) | 20 x 2-1/2 inches (508 x 63.5 mm) |
| Maximum flow rate | 40 gpm |
| Maximum temperature | 100 degrees F (37.8 degrees C) |
| Maximum pressure | 90 psi |
| Maximum dimensions (H x W x D) | 26-1/2 x 23-1/4 x 8-1/2 inches (673 x 591 x 216 mm) |
H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.
Water filters remove undesirable particles, chemicals, and microorganisms from water by means of a semipermeable barrier, adsorption, or biological processes. They are made of densely packed synthetic or natural fibers that trap suspended particles, materials that block microbes or adsorb unwanted chemicals, or substances that cause a chemical change, such as acid neutralization. For most residential, commercial, and industrial applications, water filters are manufactured in the form of replaceable cartridges that fit inside permanent housings. Filtration systems typically consist of a series of two or more types of filters, each designed to remove different contaminants. The performance of filters is measured by the minimum particle size that is blocked, the percentage of particles or microorganisms that are removed, the downstream concentration of unwanted chemicals, the maximum flow rate, and the amount of water that can be filtered before the filter must be replaced. Water filters are used in a wide range of applications, including drinking water purification, swimming pools, industrial processes, and irrigation, among others.
Pentair manufactures industrial, commercial, and residential water filtration components and systems. The company, founded in 1966 and headquartered in Minneapolis, MN, meets International Organization for Standardization (ISO) standards 9001 and 14001 for quality assurance.
Customer Reviews
Most helpful customer reviews
0 of 0 people found the following review helpful.
Used for iron in water
By akbearpaw
Bought the 3-housing setup from amazon. Sediment, iron reduction, and carbon filters bought elsewhere only because amazon did not offer all 3 kinds. The 3-housing system comes pre-assembled which saves time and hassle. I supplemented the two mounting holes on the bracket with an angle bracket, one end mounted under one of the center filter attach screws and the other end attached to my floor joist. The whole 3-filter setup is a bit heavy and since the two supplied mounting holes are off-center of the center of gravity, the assembly tends to swing one way a bit when everything is installed and filled with water. Overall the system is great, very stout construction and my water is now clear of iron.
